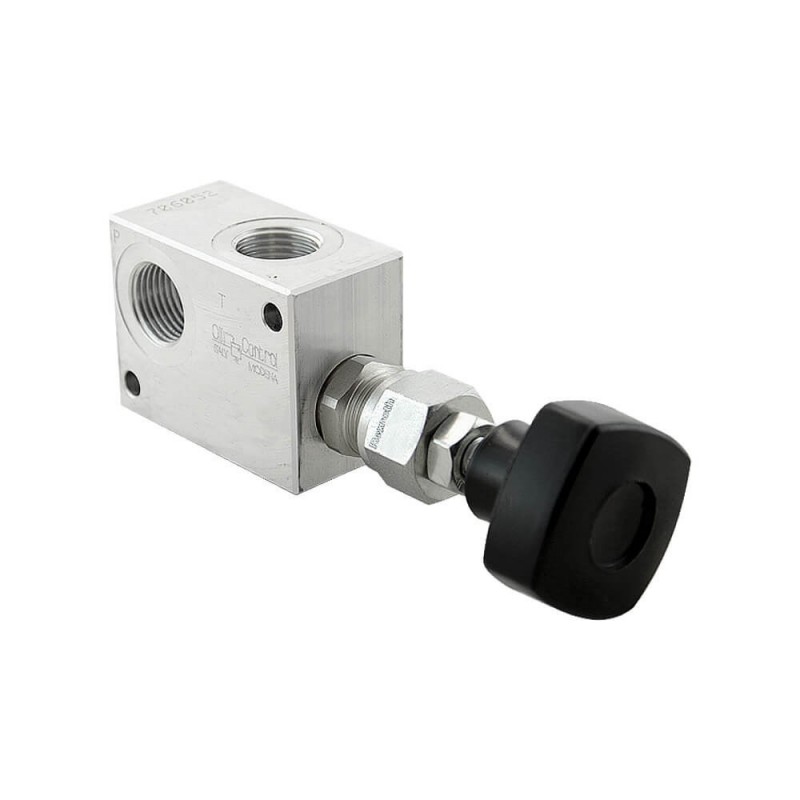

Hydraulic pressure relief valve 30l/mn (05-50 bar)

Ref.1 : 051301040305000

Ref.2 : R930001291

> Technical sheet

Available for order

Notify me when available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Pressure adjustment	05 - 50 bar
Material	Alluminium
Flow Max	30 l/mn
Assembly	In line
Connection	Gaz - 1/2"
Adjustment type	By handwheel
Operation type	Direct
Family	Pressure Limiter

Direct acting relief valve

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 051301040305000 has a pressure of 05 - 50 bar. It is adjusted By handwheel. The assembly is In line. It has a maximum flow capacity of 30 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
