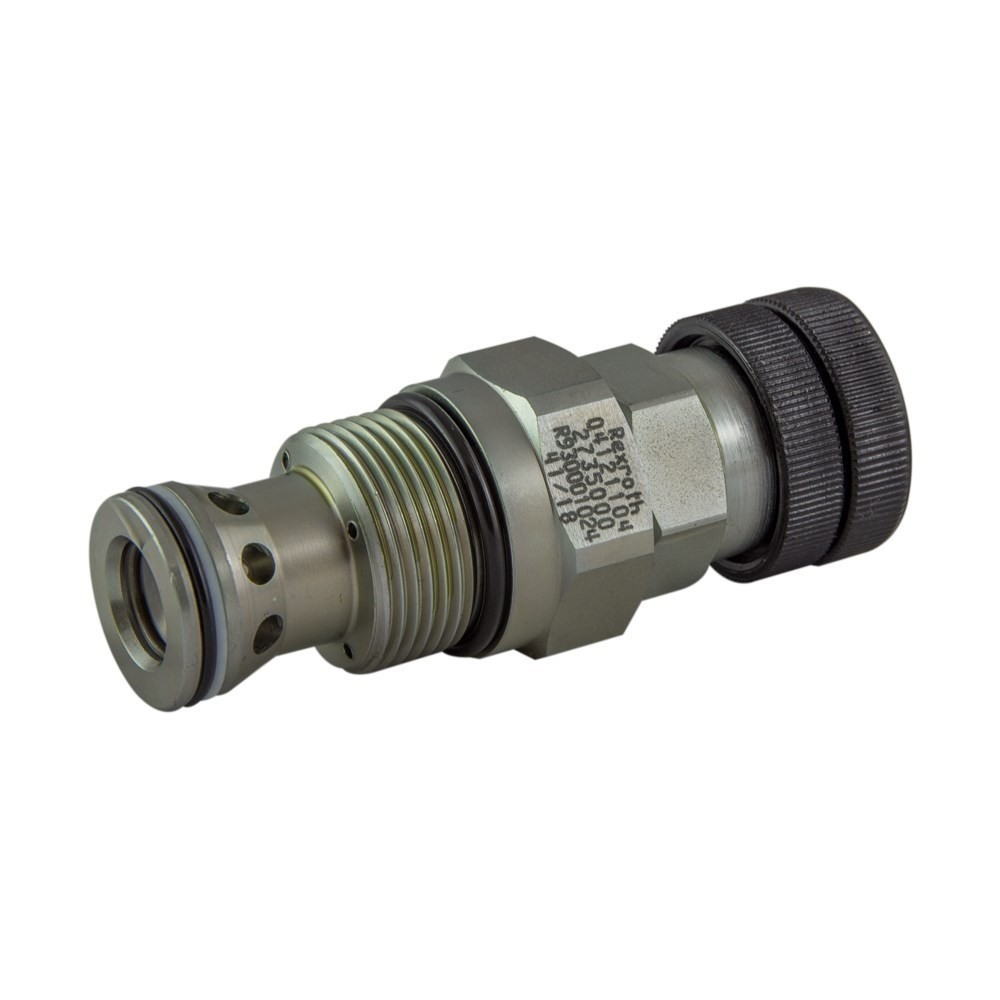

Hydraulic pressure relief valve 300l/mn VSPN 16A 35 (35-350 bar)

Ref.1 : 041211042735000

Ref.2 : R930001024

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Technical characteristic
More info

Pressure adjustment	35 - 350 bar
Flow Max	300 l/mn
Cavity	CA 16A 2N
Assembly	Cartridge
Adjustment type	By handwheel
Operation type	Piloted operated
Family	Pressure Limiter

Direct operated relief valve

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Piloted operated.This pressure relief valve with reference 041211042735000 has a pressure of 35 - 350 bar. It is adjusted By handwheel. The assembly is Cartridge . It has a maximum flow capacity of 300 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
