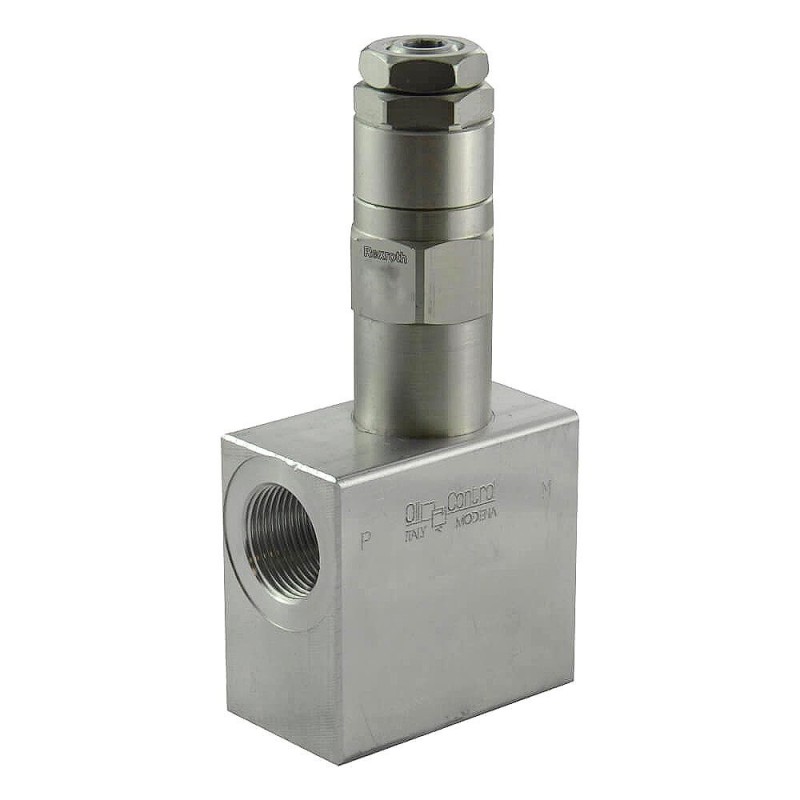

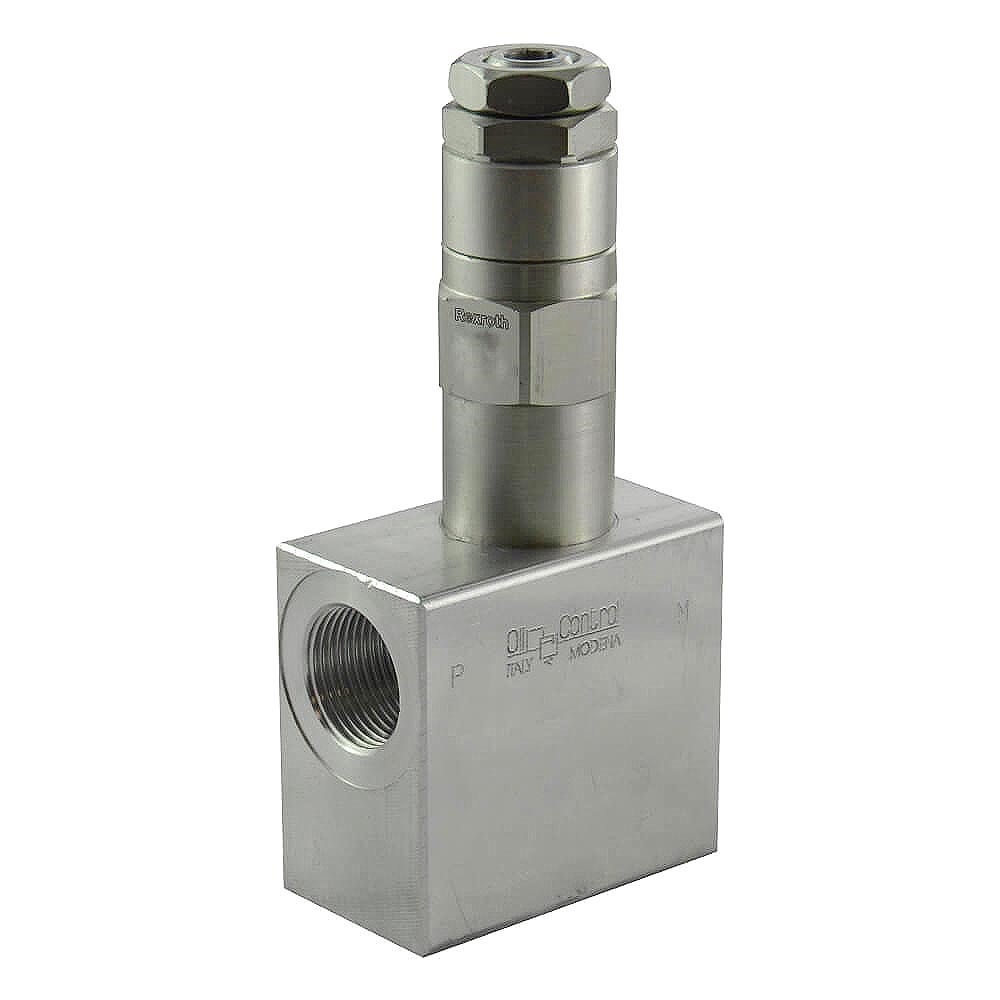

Hydraulic pressure relief valve 150l/mn VSDC (05-50 bar)

Hydraulic pressure relief valve 150l/mn VSDC (05-50 bar)

051202030405000

R930007005

> Technical sheet

Available

To see our prices and order, you must create an account or log in

Sign up or Log in
Pressure adjustment05 - 50 bar
Flow150 l/mn
MaterialAluminium
CavityBloc
AssemblyIn line
ConnectionGaz - 3/4"
Adjustment typeScrew adjustment
Operation typeDirect

Direct acting relief valve

This hydraulic pressure relief valve offered by OCGF have the function of limiting the pressure and providing protection to the pump in a hydraulic circuit. The operation type of this pressure relief valve is Direct.This pressure relief valve with reference 051202030405000 has a pressure of 05 - 50 bar. It is adjusted By screws. The assembly is In line. It has a maximum flow capacity of 150 l/mn. For technical advice, do not hesitate to contact us using the contact details at the bottom of this page.
